Non-Oriented Grain Steel (CRNGO)

Totally elaborated non-oriented electric steel usually has a varying level of silicon and has magnetic properties.

It has similar magnetic properties in all directions in the plane of the leaf.

It is mainly used for:

Motors
Generators
Alternators
Ballasts
Small transformers
Other electromagnetic applications

Characteristics

GOST 21427.2-83 Isotropic Electrical Steel Sheet, ASTM A677 / A677M-89, EN 10106-96.

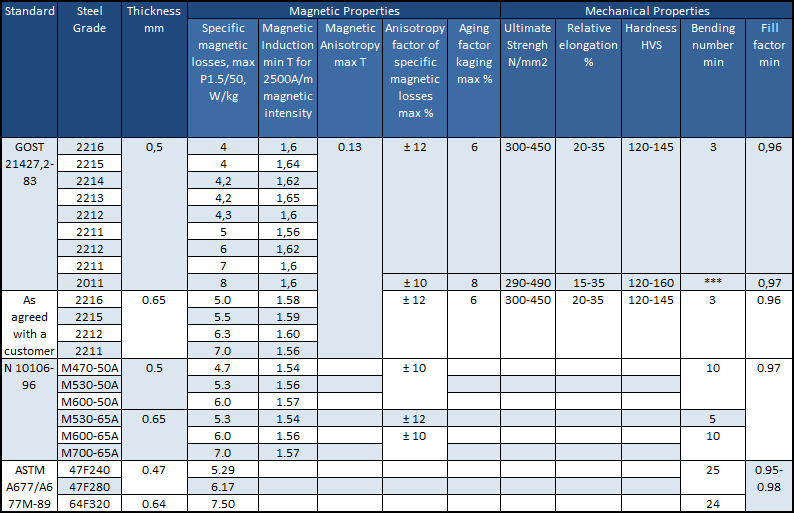

Magnetic and mechanical properties of electric steel sheets.

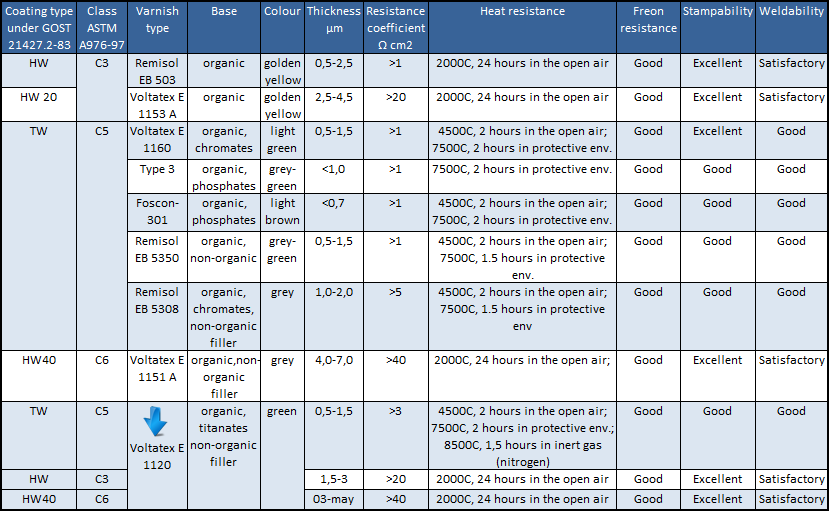

Coating: The most used in this quality of material is the C3 is organic.

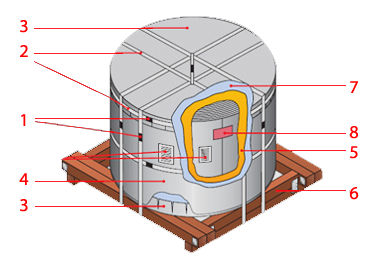

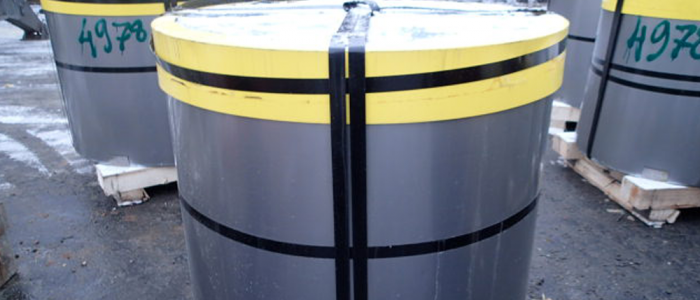

Identification and Export Packaging: All rolls will be identified with:
• Customer • Date • Material • Number of Rolls • Dimensions • Kilos • Supplier’s batch number

1. band
2. thick band
3. side cover
4. outer sleeve
5. wrapping paper coated with P.E.
6. Pallet blanket with screws and angles
7. film P.E.
8. adhesive tape
9. self-adhesive label
